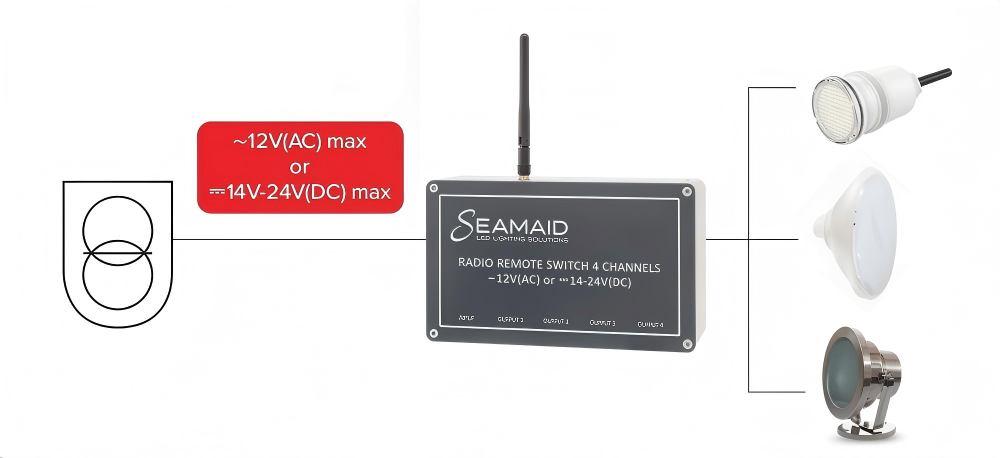

1 or 4 channels, the radio control module allows you to connect several projectors without changing the installation.
INTRODUCTION：
Did you know ? Fitted with connectors for cable of up to 6mm2, the radio control switch can be installed without any specific work on the projectors low voltage power supply.

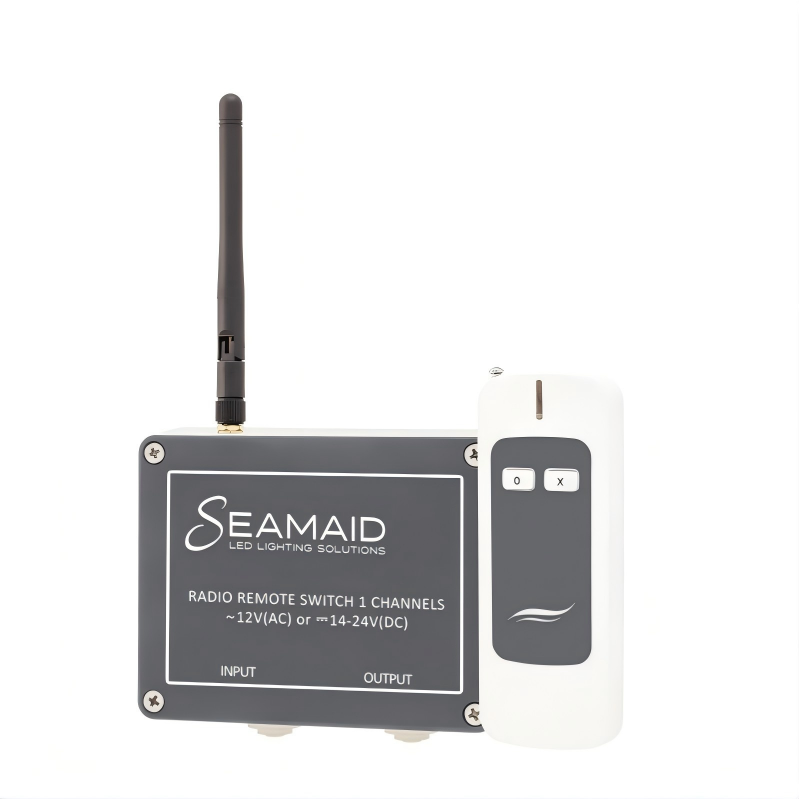

1-channel model with 2-button remote control : Ideal for managing several fully synchronized SEAMAID projectors. Simple on/off mechanism for white lighting or for managing colours for RGB. Only operates at low voltage ~12V(AC) or ⎓14-24V (DC) with projectors from the SEAMAID range. Wiring up to 2 x 6mm².

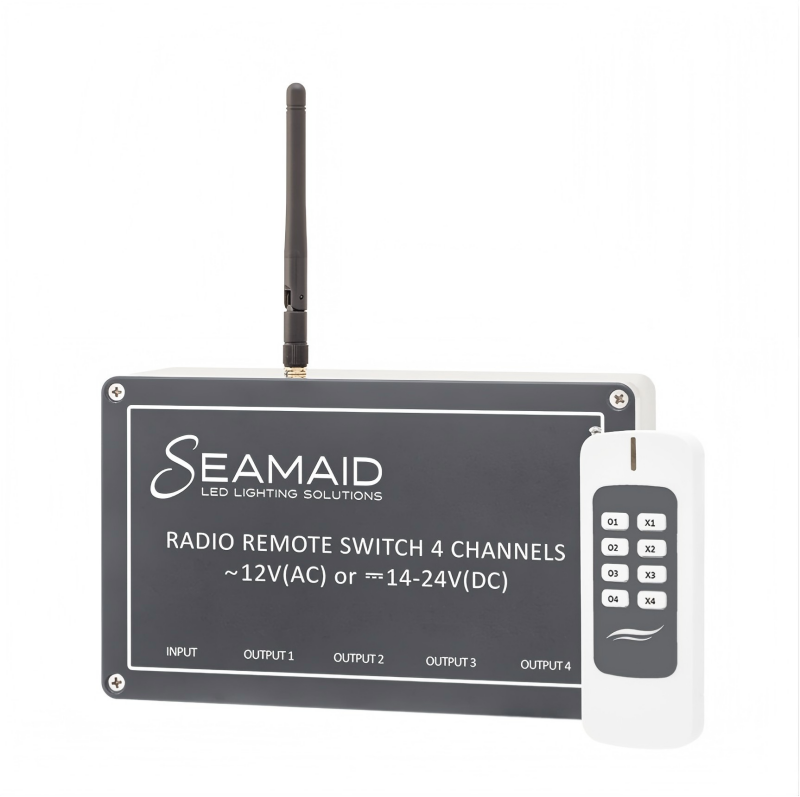

4-channel model with 8-button remote control : Ideal for managing several SEAMAID projectors with 4 lighting areas that are either independent or can be synchronised, where every channel can support up to 6 projectors. Only operates at low voltage ⎓12V(AC) or ⎓14-24V (DC) with projectors from the SEAMAID range. Wiring up to 2 x 6mm².
SPECIFICATIONS：
|
Ref |
Model | Input Voltage |
Input Current |
Power Max. |
Electrical Class |
Input Protection |
Output Protection |
Standby Consuption |
|
501801 |
1-Channel |
~12V(AC) 50/60Hz or ⎓14V-24V(DC) |
20A max. |
240W ~12V(AC) 480W ⎓14V-24V(DC) |
III |
20A fuse |
20A fuse |
80 mA |
|
501818 |
4-Channel |
~12V(AC)50/60Hz or ⎓14V-24V(DC) |
40A max. |
480W ~12V(AC) 960W ⎓14V-24V(DC) |
III |
40A fuse |
20A fuse |
80 mA |
