SMART LIGHTING:Smart Lighting technology allows all your SEAMAID installations to be controlled remotely. Adjust the light intensity, program the switch-off or manage the colour of your prightings with a simple gesture.
INTRODUCTION：
SMART LIGHTING:Smart Lighting technology allows all your SEAMAID installations to be controlled remotely. Adjust the light intensity, program the switch-off or manage the colour of your lightings with a simple gesture.
Illuminate your spa, the stairs of your pool or your submerged beaches!

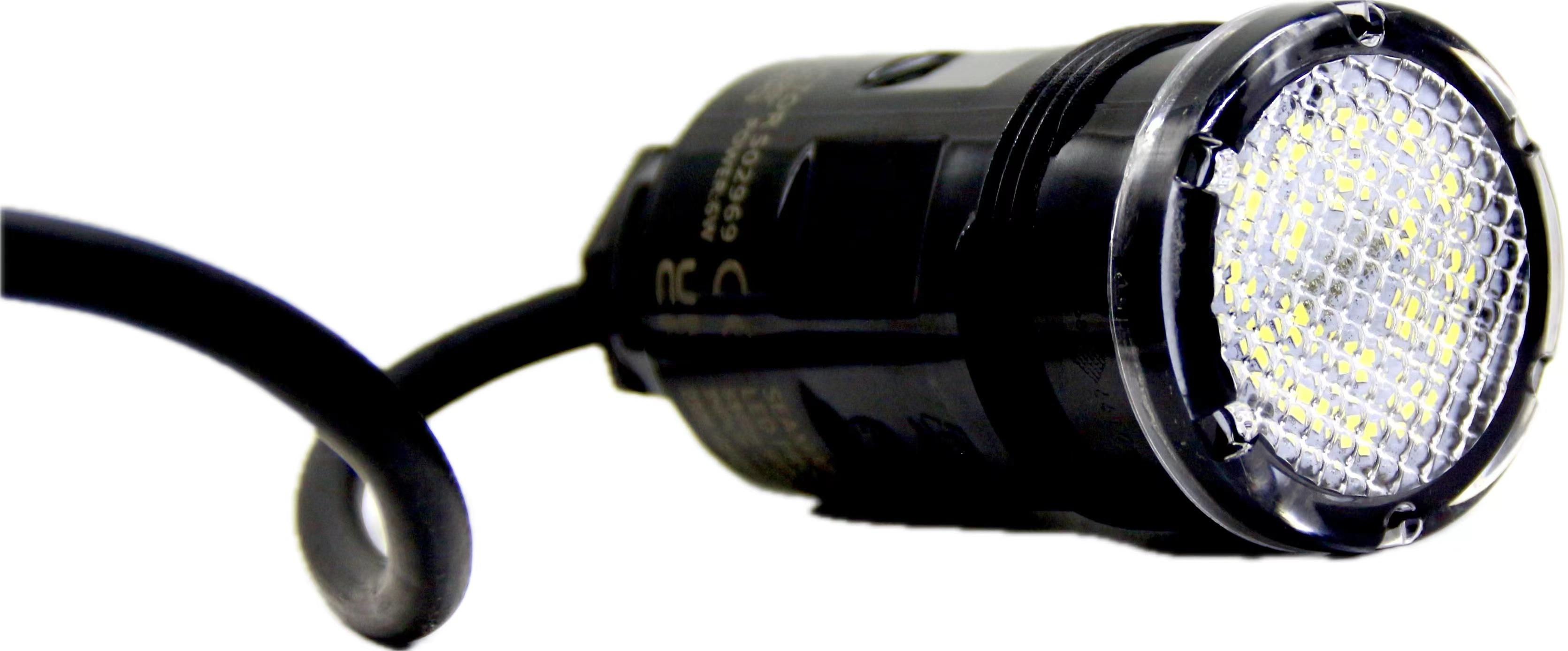

To be installed during construction, the SEAMAID tubular spotlight highlights specific areas of the pool.
It can be installed by screwing into a broom socket or through a wall with a 1.5″ thread.
Did you know? Once screwed into the brush socket, this spotlight disappears into the wall feedthrough! Discretion guaranteed! It is installed by screwing into a broom socket or wall feed-through with a 1.5″ thread.
This luminaire operates only on ⎓24V(DC) safety extra-low voltage.
SPECIFICATIONS：
|
Ref |
Size |
Colour |
Luminous power |
LED number |
Power |
|
502976 |
50 mm |
RGB |
260lm max |
9 |
6 WATTS |
|
502969 |
50 mm |
White |
680lm |
18 |
6 WATTS |
IDEAS AND RECOMMENDATIONS:
These pool lightings must be connected to a stabilized, double-insulated ~230V(AC)/⎓24V(DC) power supply compatible with LED lights, which wattage must be matched to the total power input and the length of cable used. It is important to check the compatibility of the vacuum fitting before final installation. Some models with a thread locking system are not suitable. The wall feed-through should be connected to the junction box with a waterproof sleeve. It is recommended to use the SEAMAID connection accessories to guarantee a perfect seal of the installation.
The excess cable should be wound into the junction box to ensure that the floodlight can be replaced in the future without the need for water.
As an option, either a radio switch or an IZZYBOX™ control module can be installed for remote control.
PICTURES：
