For installation during construction, the SEAMAID mini-lighting lights up specific areas of the pool.Screws into a vacuum fitting or wall fitting with a 1.5” thread.
FEATURES：
Compatible with all types of basin where the Installation of a traditional projector could cause sealing problems

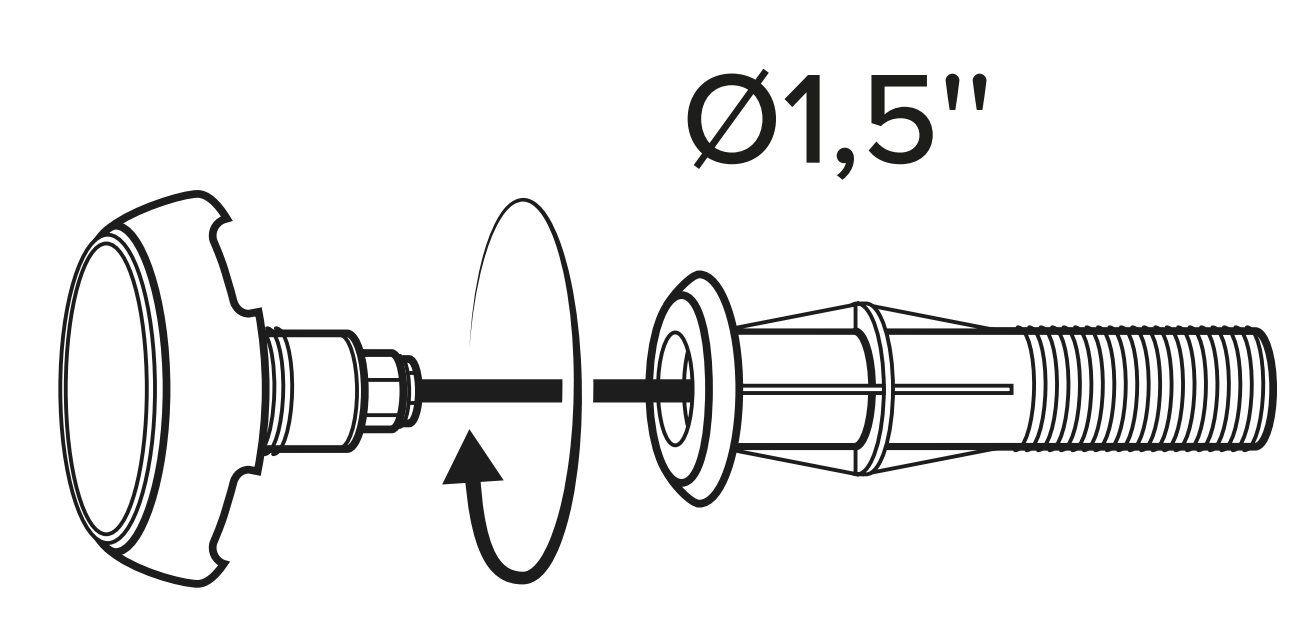

Easy installation in a wall conduit 1.5 "
Compatible with the Lumilink Module
Compatible with the Radio control modules
Work both with ~12V (AC) and ⎓20V(DC)
SPECIFICATIONS：
|
Ref |
Input Voltage |
Colour |
Beam Angle |
Luminous power |
LED number |
Power |
|
500866 |
~12V (AC),50/60Hz and⎓20V(DC) |

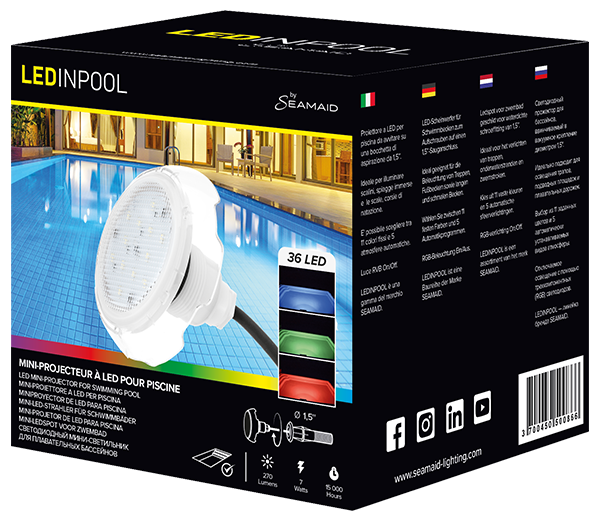

RGB on/off |
120° |
270lm max. |
36 |
7 WATTS max. |
|
500859 |
~12V (AC),50/60Hz and⎓20V(DC) |

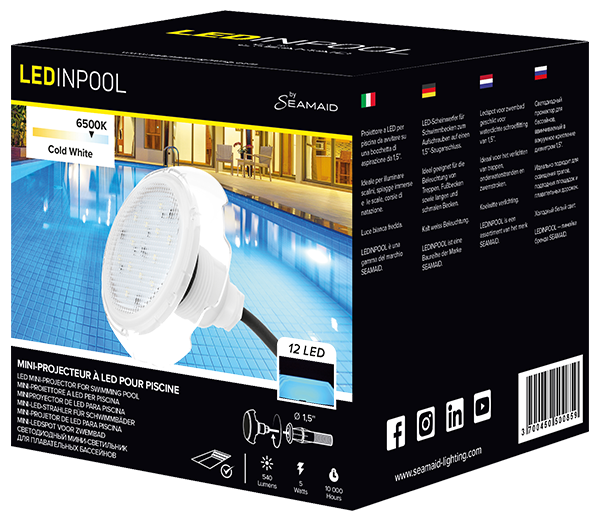

WHITE |
120° |
540 lm |
12 |
5 WATTS |

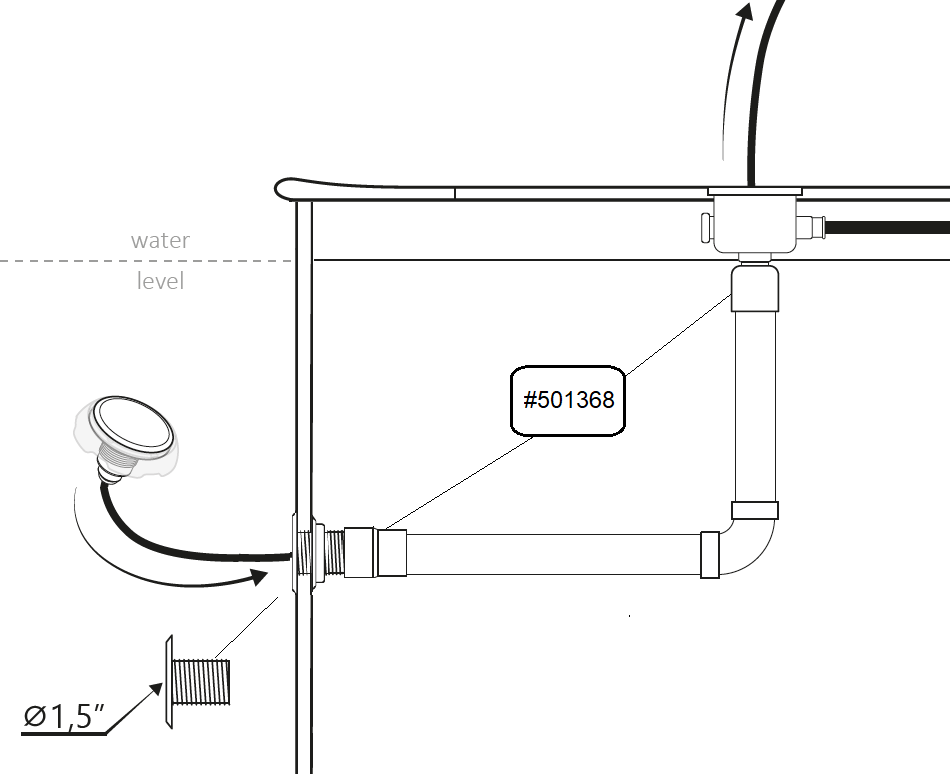

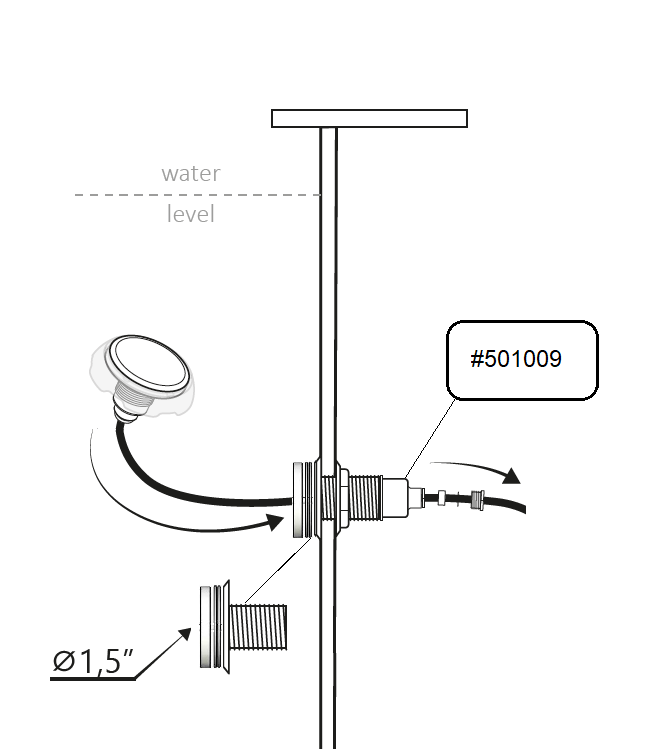

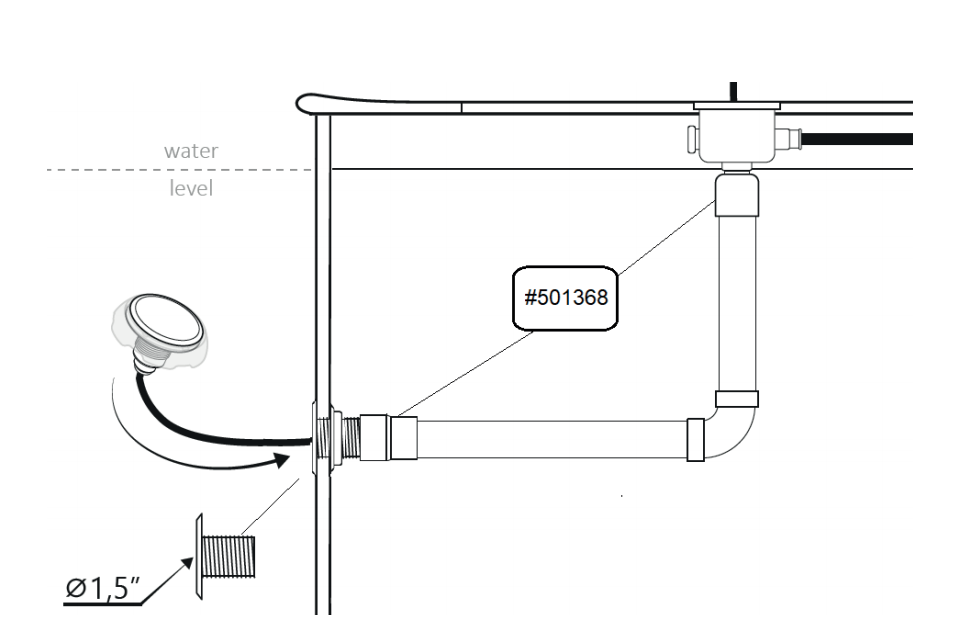

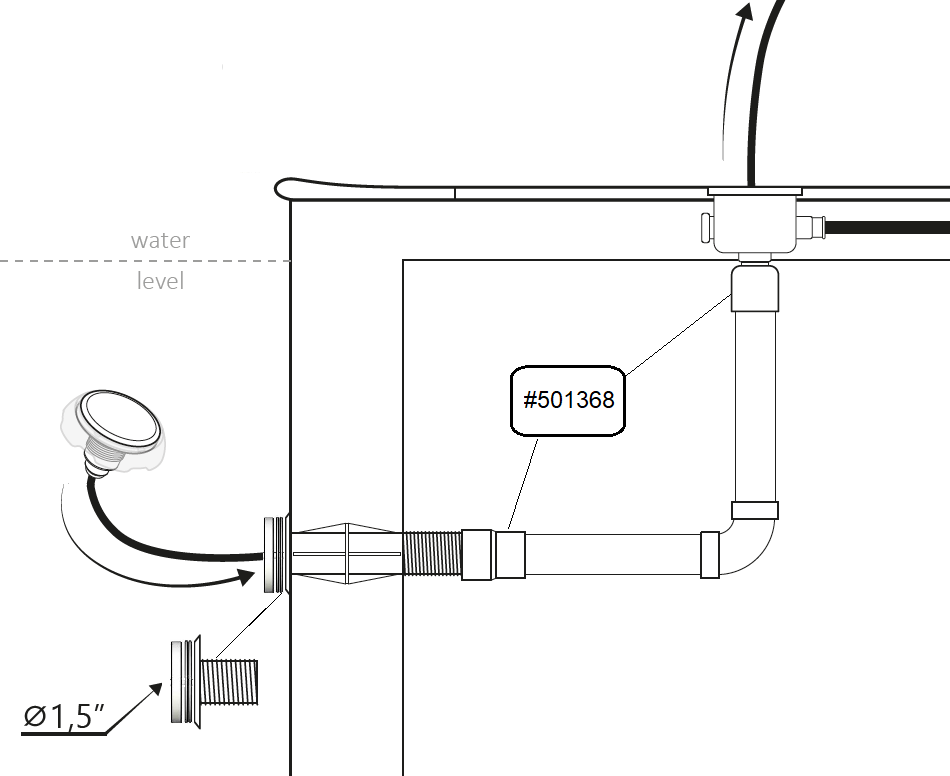

INSTALLATION:
