Compatible with any type of pool, this is just what you need to light up pre-moulded or liner pools! Screws into a vacuum fitting or wall fitting with a 1.5” thread.
INTRODUCTION：
Compatible with any type of pool, this is just what you need to light up pre-moulded or liner pools! Screws into a vacuum fitting or wall fitting with a 1.5” thread.
Did you know? Originally sold with a white crown, it is also available in eight colors. Match the crowns to the colour of the pool to delight your customers!
This luminaire operates only on safe extra-low voltage, ~12V(AC) and ⎓ 20V(DC).
SPECIFICATIONS：
|
Ref |
Size |
Colour |
Luminous power |
LED number |
Power |
|
502877 |
290 mm |
RGB with remote control |
600lm |
90 |
16 WATTS |
|
502860 |
290mm |
White |
1450lm |
60 |
13 WATTS |
IDEAS AND RECOMMENDATIONS:
When using for the first time, it is necessary to pair the remote control provided with the colour lighting. As an optional extra, you may install a radio switch between the lamp (or group of lamps) and the transformer in order to remotely turn the device on and off, or synchronise multiple devices.
These pool lightings must be connected to a two-coil insulated safety transformer that is at least 20% more powerful than the total power absorbed by the connected lightings. It is important to check the compatibility of the vacuum fitting before finalising installation. Certain models equipped with a stop thread are not suitable. The wall fitting will be connected to the connection box with watertight conduit. For best results, use connection accessories from SEAMAID to guarantee a completely waterproof installation.
Roll the extra cable up in the connection box to ensure that you will be able to replace the lighting in the future out of the water.

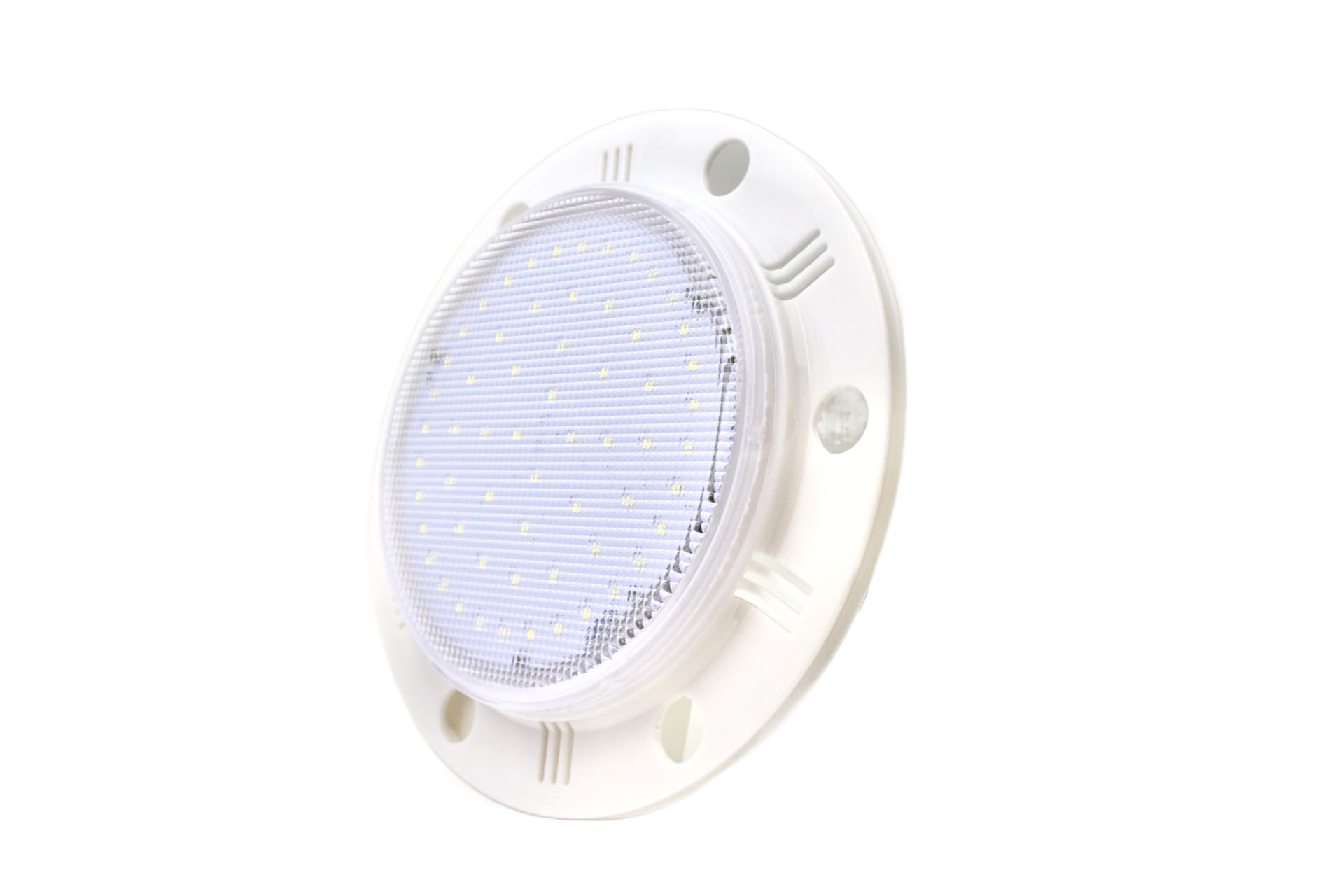

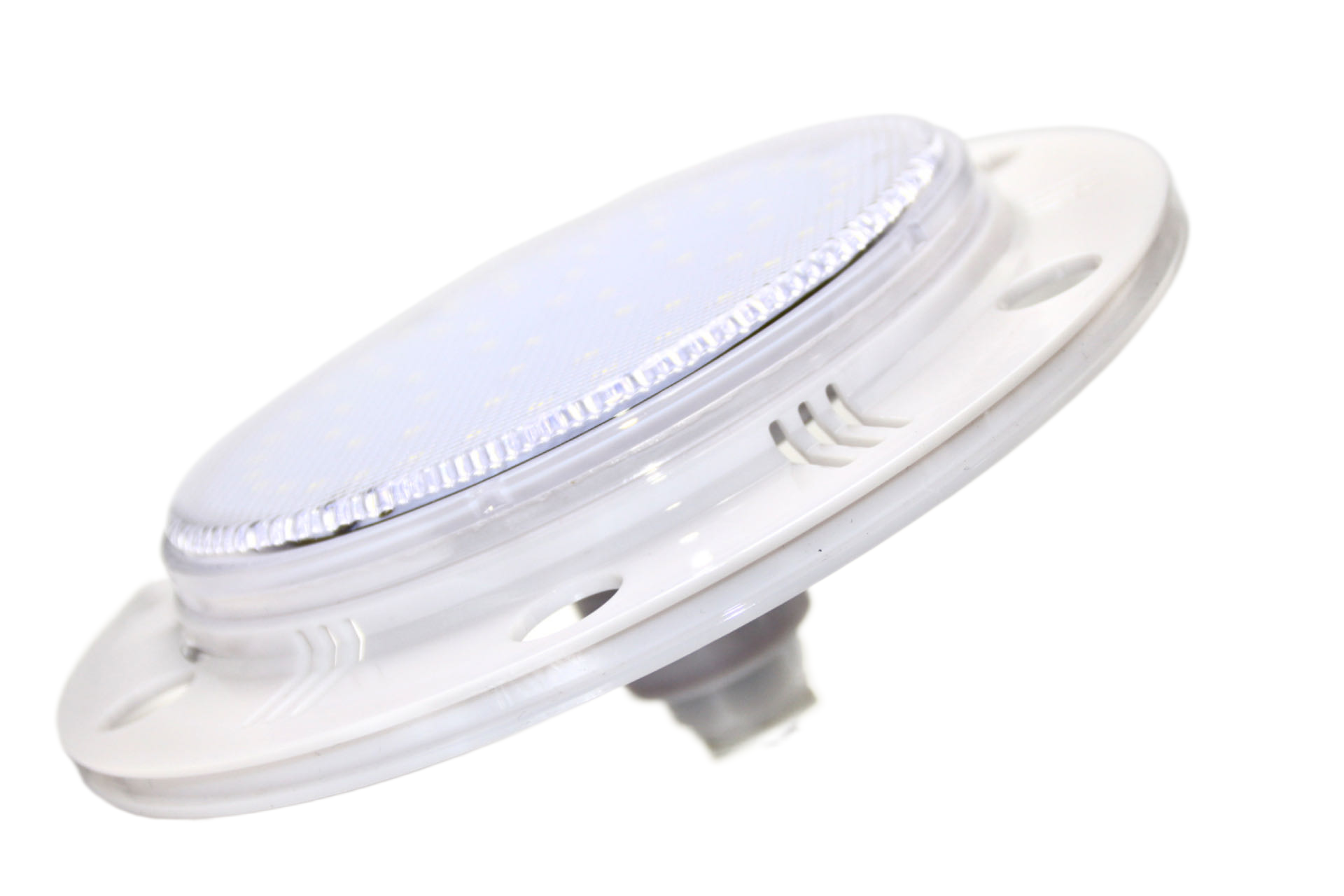

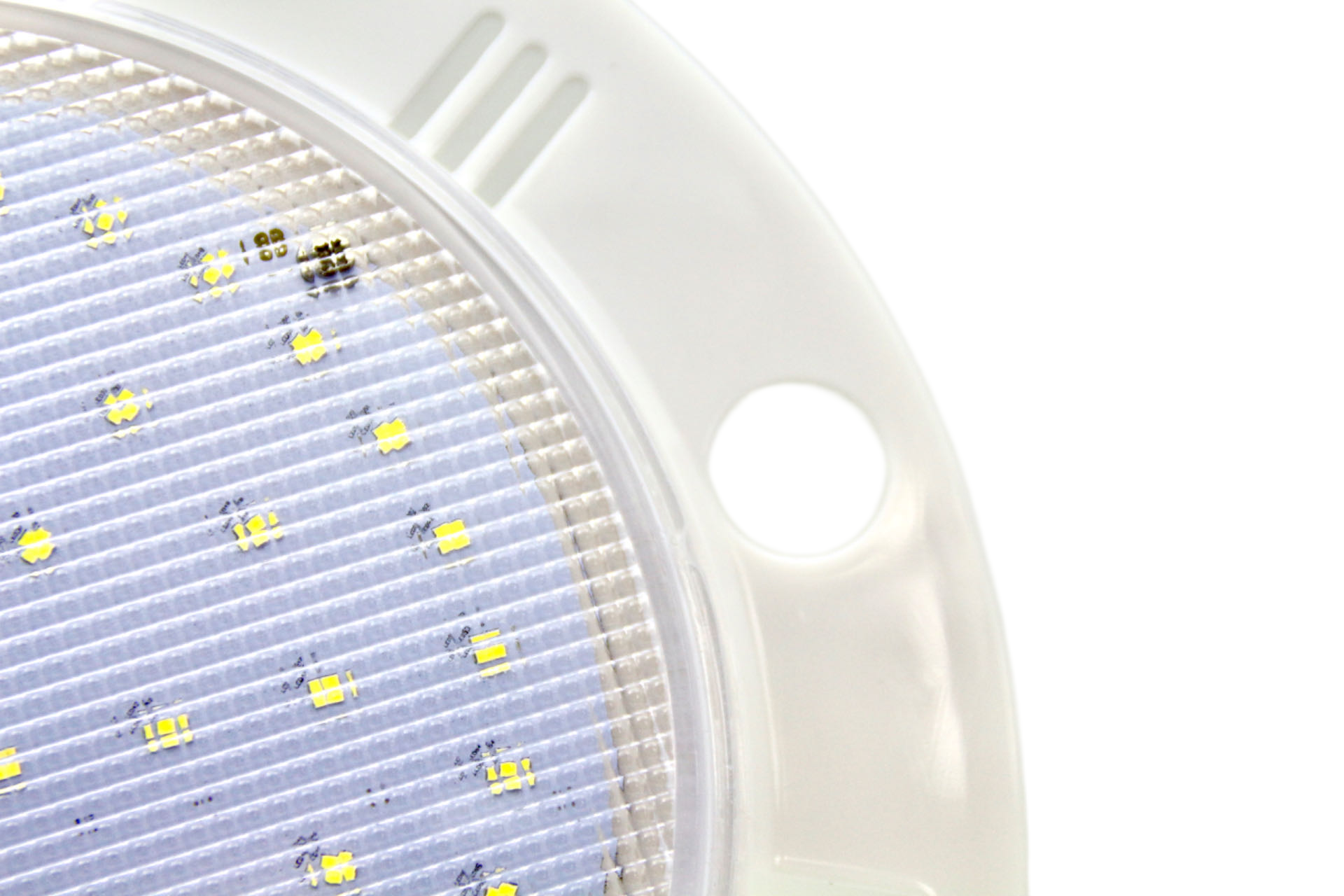

PICTURES：
