For installation during construction, the SEAMAID mini-lighting lights up specific areas of the pool.Screws into a vacuum fitting or wall fitting with a 1.5” thread.
INTRODUCTION：
For installation during construction, the SEAMAID mini-lighting lights up specific areas of the pool.Screws into a vacuum fitting or wall fitting with a 1.5” thread.

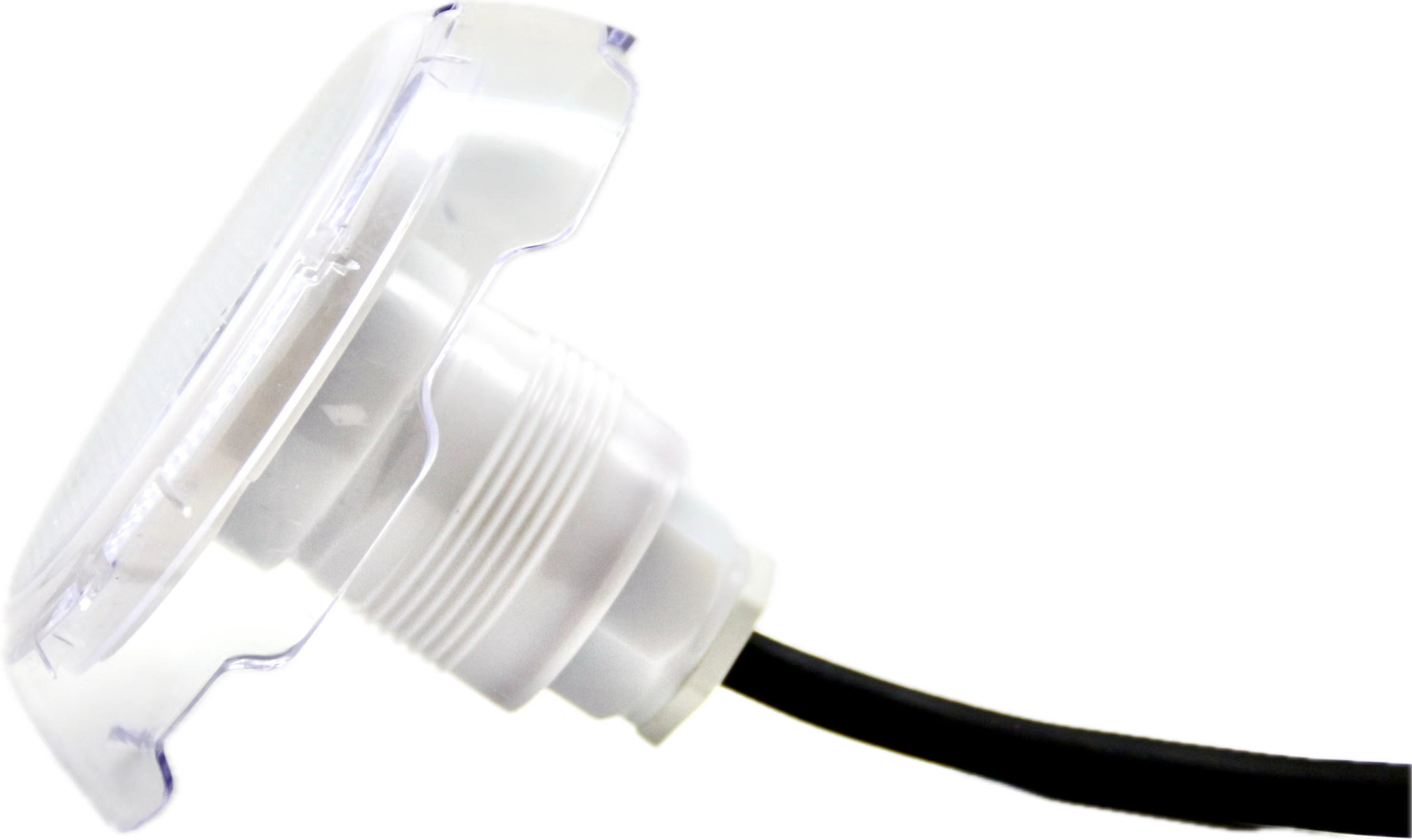

Did you know ? The rear of the plug has a 1.5” male thread to make the SEAMAID mini-projector easier to install, as no specialist tools are required.
This luminaire operates only on safe extra-low voltage, ~12V(AC) and ⎓20V(DC).
SPECIFICATIONS：
|
Ref |
Size |
Colour |
Luminous power |
LED number |
Power |
|
500866 |
125 mm |
RGB on/off |
270lm |
36 |
7 WATTS |
|
500859 |
125 mm |
WHITE |
540lm |
12 |
5 WATTS |
IDEAS AND RECOMMENDATIONS:
These pool lightings must be connected to a two-coil insulated safety transformer that is at least 20% more powerful than the total power absorbed by the connected lightings. It is important to check the compatibility of the vacuum fitting before finalising installation. Certain models equipped with a stop thread are not suitable. The wall fitting will be connected to the connection box with watertight conduit. For best results, use connection accessories from SEAMAID to guarantee a completely waterproof installation.
Roll the extra cable up in the connection box to ensure that you will be able to replace the lighting in the future out of the water. As an optional extra, you may install a radio switch between the lamp (or group of lamps) and the transformer in order to remotely turn the device on and off, or synchronise multiple devices.

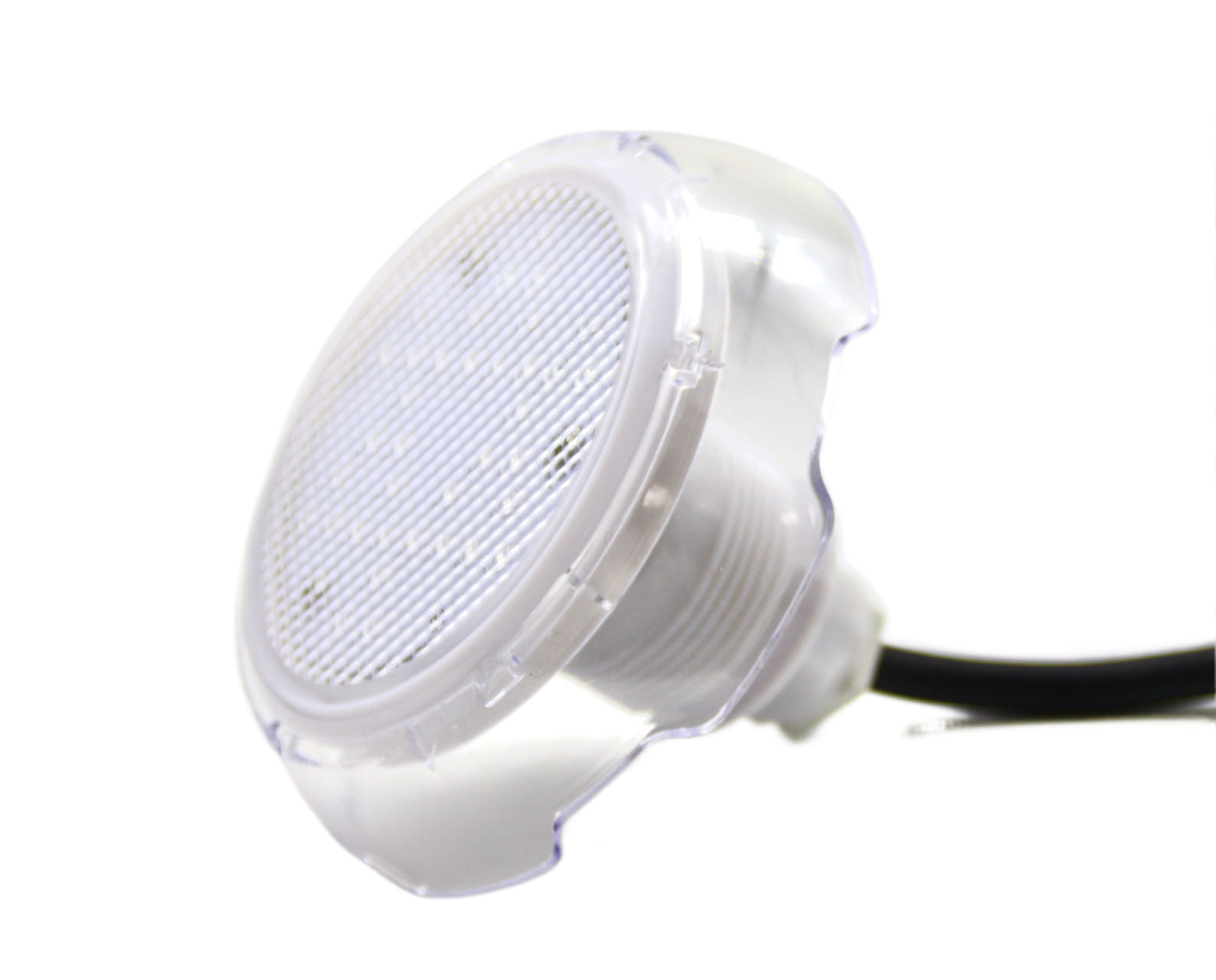

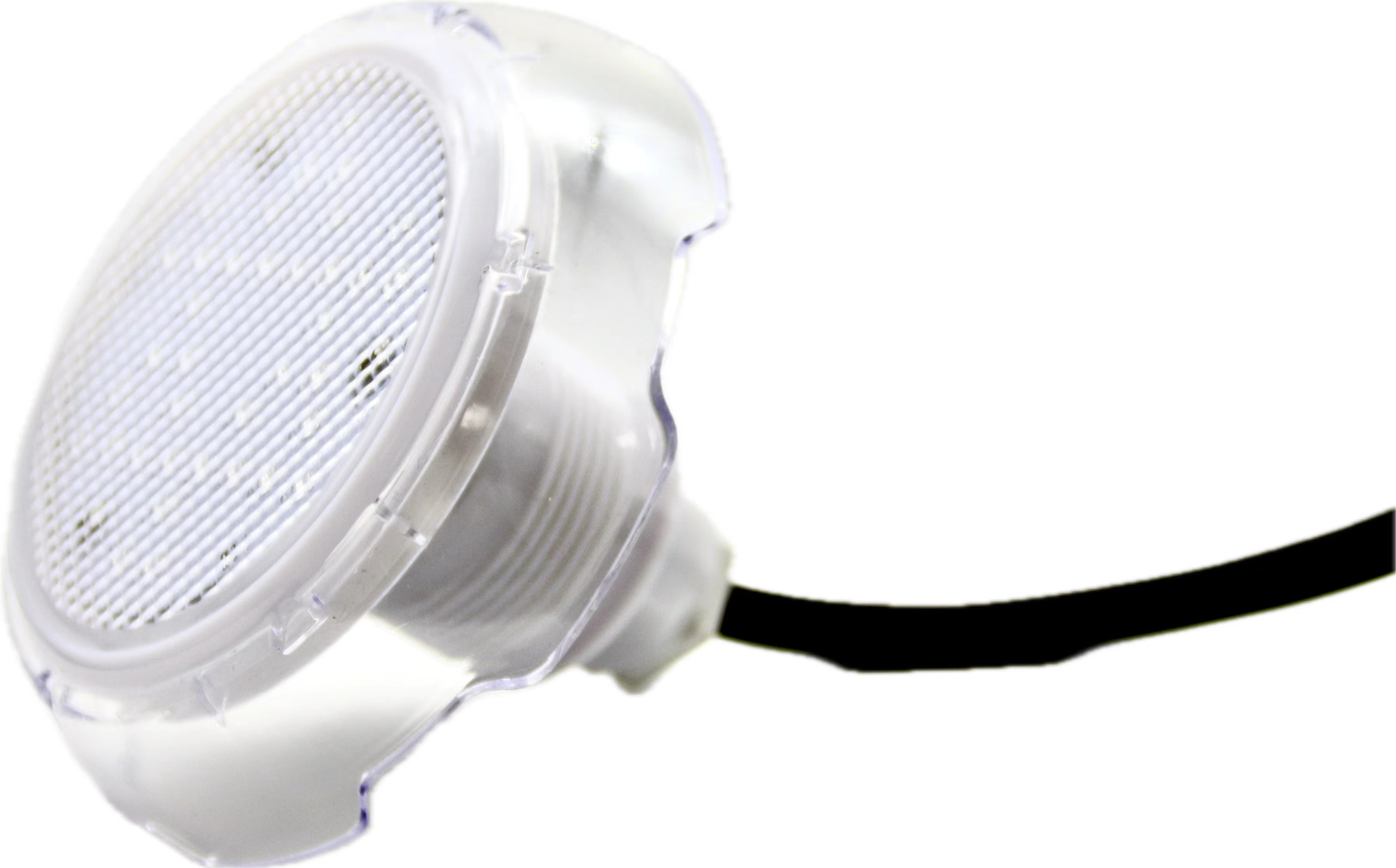

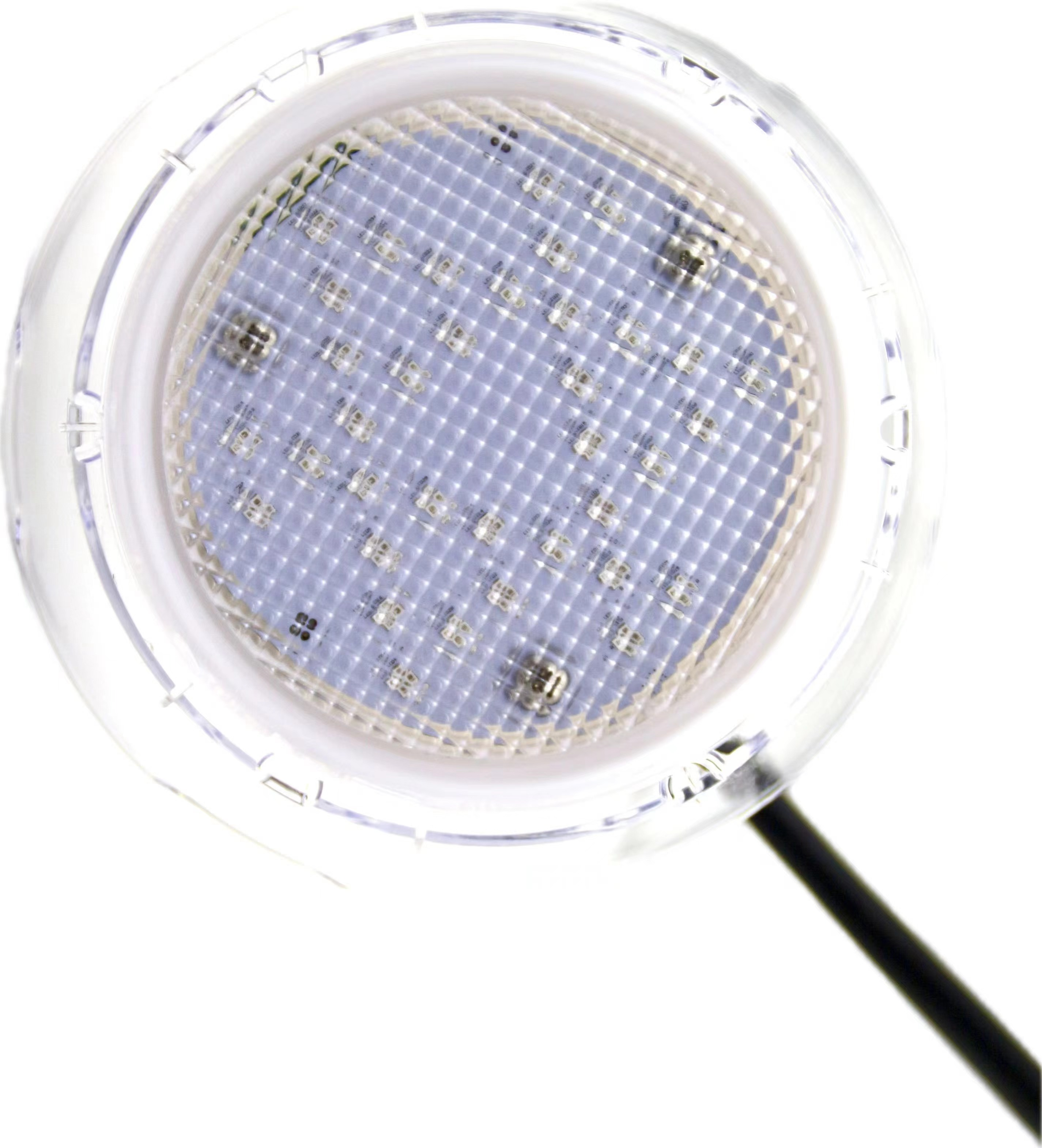

PICTURES：
